Oil Control Valve (OCV) Removal/Installation

WARNING:

• A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
3. Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
4. Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION .)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

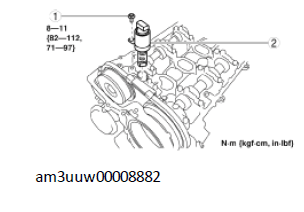

Fig 1: Installing Oil Control Valve (OCV)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	OCV installation bolt
2	OCV
