Oil Pan Disassembly Note

  1. Remove the oil pan using a separator tool.

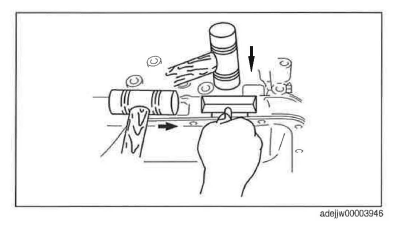

    Fig 1: Removing Oil Pan Using Separator Tool
    G09757170Courtesy of MAZDA MOTORS CORP.
