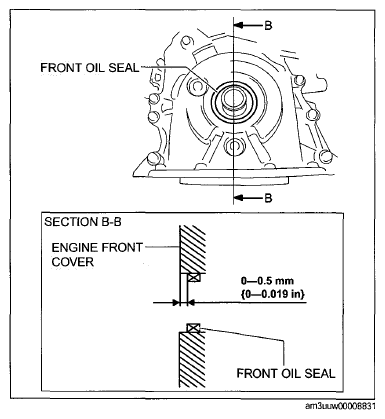

Front Oil Seal Assembly Note
- Apply clean engine oil to the inner surface of a new front oil seal.
- Insert the front oil seal into the engine front cover by hand.
- Tap the oil seal in evenly using the SST
and a hammer.
Front oil seal press on amount
0-1.0 mm {0-0.039 in}
