Crankshaft Pulley Lock Bolt Assembly Note

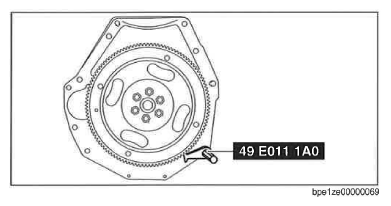

  1. Hold the crankshaft using the SST  .
  2. Tighten the crankshaft pulley lock bolt in the order shown in the following two steps.

    Tightening procedure

    Step 1: 90-110 N.m {9.2-11 kgf.m, 67-81 ft.lbf}

    Step 2: 55-65°

    Fig 1: Identifying Crankshaft Pulley Lock Bolt
    G09757334Courtesy of MAZDA MOTORS CORP.
