Coil Resistance Inspection

  1. Measure the resistance between terminals A and B using an ohmmeter.

    OCV coil resistance 6.9-7.5 ohms [20°C {68°F}]

    • If it is not within the specification, replace the OCV.

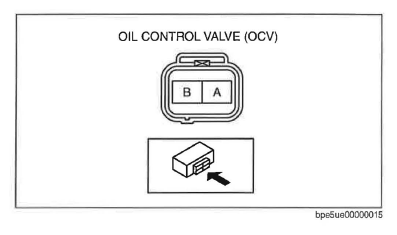

      Fig 1: Identifying Oil Control Valve Terminals A And B
      G09757155Courtesy of MAZDA MOTORS CORP.
