Inspection After Removal

  1. Visually inspect the dual-mass flywheel for crack.
    • If there is any crack, replace the dual-mass flywheel.
  2. Visually inspect the ring gear on the dual-mass flywheel for damage.
    • If there is any damage, replace the dual-mass flywheel.
  3. Visually inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.
    • If there is any malfunction, replace the dual-mass flywheel.
    NOTE:
    • Correct slight scratches and discoloration using sandpaper.
    Fig 1: Inspecting Dual-Mass Flywheel For Crack
    G09757248Courtesy of MAZDA MOTORS CORP.
  4. Visually inspect for grease leakage between the primary mass and secondary mass.
    • If there is grease leakage, replace the dual-mass flywheel.

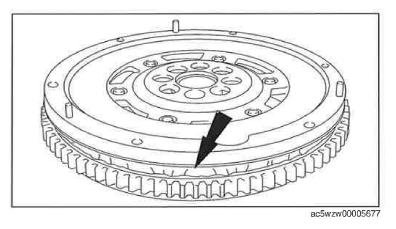

      Fig 2: Locating Grease Leakage Between Primary Mass And Secondary Mass
      G09757249Courtesy of MAZDA MOTORS CORP.
