Valve Seal Disassembly Note

  1. Remove the valve seal using the SST  or pliers.

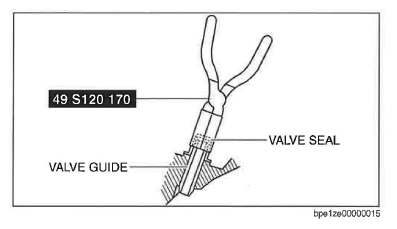

    Fig 1: Identifying Valve Seal And Valve Guide
    G09757190Courtesy of MAZDA MOTORS CORP.

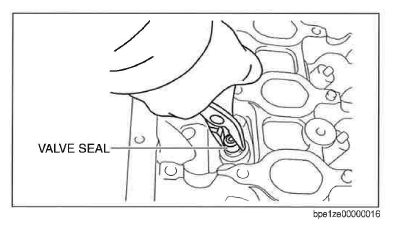

    Fig 2: Removing Valve Seal Using SST And Pliers
    G09757191Courtesy of MAZDA MOTORS CORP.
