Water Inlet Pipe Assembly Note

CAUTION:
  • Do not apply oil (such as engine oil, ATF) to the O-ring of the water inlet pipe. Otherwise, the 0-ring could swell causing a seal malfunction.
  1. Clean away the sealant adhering to the bolt hole on the cylinder block side of the water inlet pipe stay.
  2. Apply engine coolant to the 0-ring.
  3. Install the 0-ring to the water inlet pipe.
  4. Insert the water inlet pipe into the water pump being careful not to damage the 0-ring.
  5. Install the water inlet pipe gasket with the gasket projection facing the direction shown in the figure.

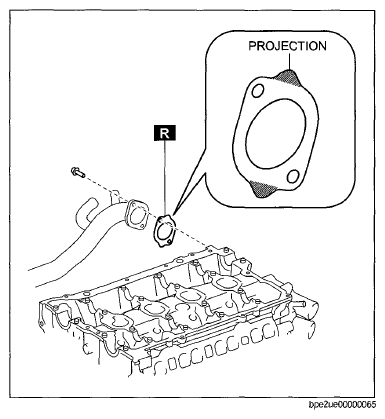

    Fig 1: Installing Water Inlet Pipe Gasket With Gasket Projection
    G08348130Courtesy of MAZDA MOTORS CORP.
  6. Tighten the bolts in the order shown in the figure.

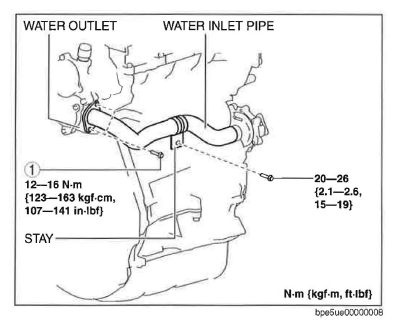

    Fig 2: Water Inlet/Outlet Pipe Bolt Tightening Sequence With Torque Specifications
    G09757297Courtesy of MAZDA MOTORS CORP.
