Electric Variable Valve Timing Actuator, Hydraulic Variable Valve Timing Actuator Assembly Note

  1. Align the knock pin on the end of the camshaft with the notch on the actuator (intake side) or knock pin installation hole (exhaust side), then install the actuator to the camshaft.

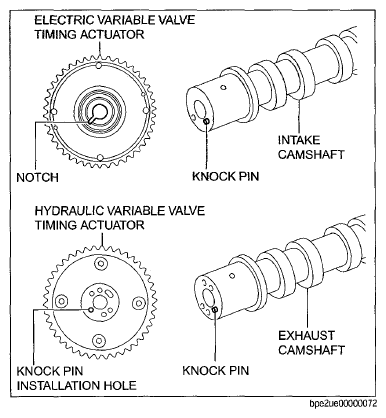

    Fig 1: Identifying Electric Variable Valve Timing Actuator And Hydraulic Variable Valve Timing Actuator Assembly
    G08348139Courtesy of MAZDA MOTORS CORP.
  2. Hold the camshaft using a wrench on the cast hexagon, and tighten the actuator installation bolt.

    Tightening torque

    Electric variable valve timing actuator (intake side): 102-114 N.m {10.5-11.6 kgf.m, 76-84 ft.lbf}

    Hydraulic variable valve timing actuator (exhaust side): 75-85 N.m {7.7-8.6 kgf.m, 56-62 ft.lbf}

    Fig 2: Tightening Actuator Bolt
    G08348140Courtesy of MAZDA MOTORS CORP.
