Water Outlet Assembly Note

  1. Install the water outlet gasket with the bead of the gasket facing the direction shown in the figure.
  2. Temporarily tighten the water outlet Bolts.

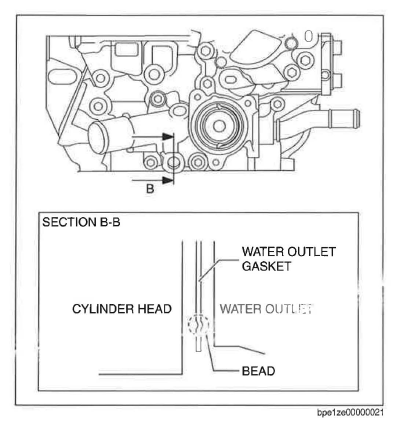

    Fig 1: Installing Water Outlet Gasket With Bead Of Gasket
    G09757288Courtesy of MAZDA MOTORS CORP.
  3. Tighten bolt A of the 5 bolts shown in the figure to the specified torque first.

    Tightening torque 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

    NOTE:
    • The tightening order for the remaining 3 bolts is optional.

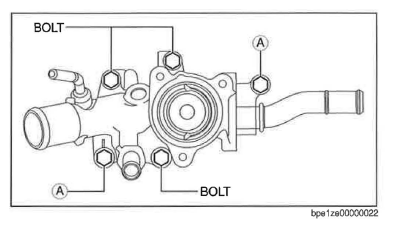

    Fig 2: Water Outlet Assembly Bolt Tightening Sequence
    G09757289Courtesy of MAZDA MOTORS CORP.
