Valve Keeper Assembly Note

  1. Install the valve keeper using the SST.

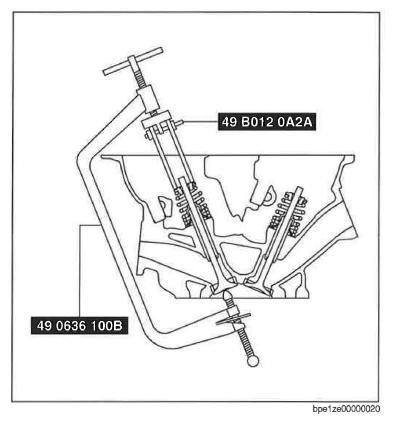

    Fig 1: Installing Valve Keeper Using SST
    G09757287Courtesy of MAZDA MOTORS CORP.
