Cylinder Head Assembly (I): Notes

  1. Assemble in the order indicated in the table.

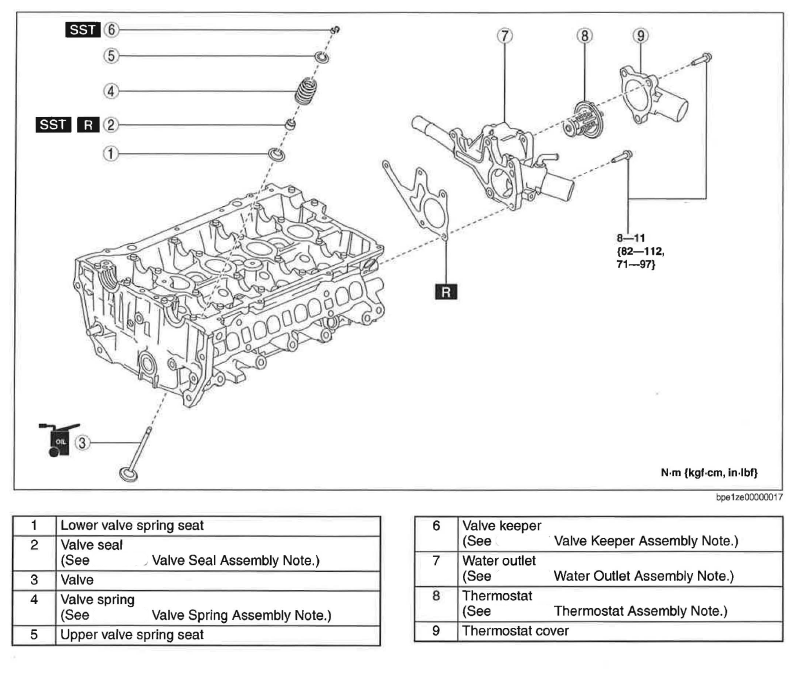

    Fig 1: Exploded View Of Cylinder Head Assembly With Torque Specifications
    G09757284Courtesy of MAZDA MOTORS CORP.
