Cylinder Block Disassembly (II): Notes

  1. Disassemble in the order indicated in the table.

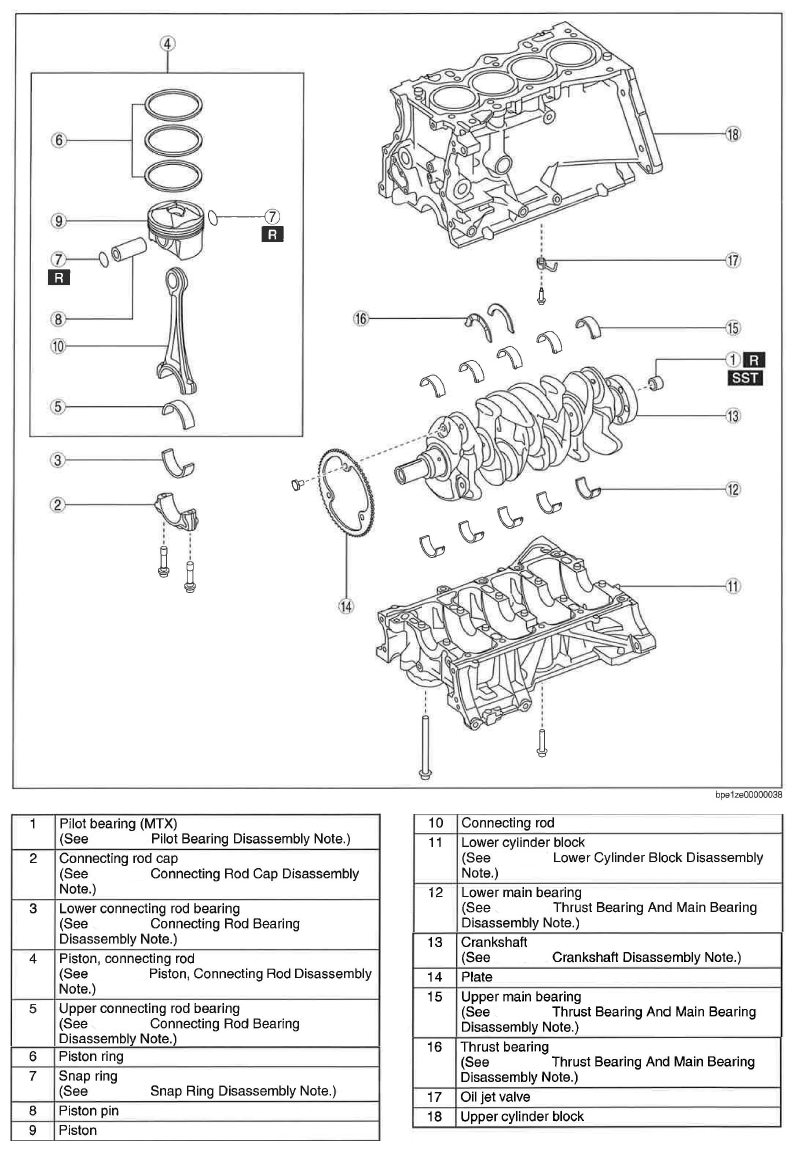

    Fig 1: Exploded View Of Cylinder Block (Disassembly Sequence)
    G09757198Courtesy of MAZDA MOTORS CORP.
