Lower Cylinder Block Disassembly Note

  1. Before removing the lower cylinder block, inspect the crankshaft end play. (See CRANKSHAFT INSPECTION .)
  2. Loosen the lower cylinder block Bolts B in two or three passes in the order shown in the figure and remove them.

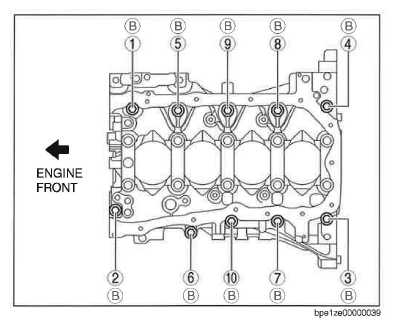

    Fig 1: Lower Cylinder Block Bolts B Loosening Sequence
    G09757202Courtesy of MAZDA MOTORS CORP.
  3. Loosen the lower cylinder block Bolts A in two or three passes in the order shown in the figure and remove them.

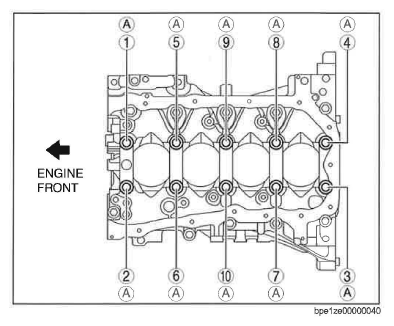

    Fig 2: Lower Cylinder Block Bolts A Loosening Sequence
    G09757203Courtesy of MAZDA MOTORS CORP.
  4. Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the lower cylinder block.
    CAUTION:
    • Do not apply excessive force to the screwdriver. Otherwise, the lower cylinder block could be damaged.
    • Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

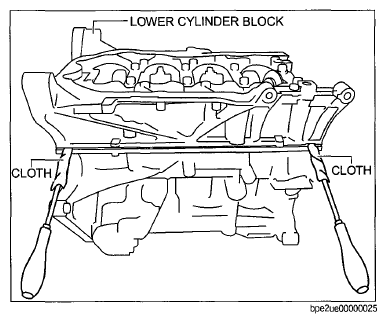

    Fig 3: Removing Lower Cylinder Block
    G08348051Courtesy of MAZDA MOTORS CORP.
