Rear Oil Seal Disassembly Note

  1. Cut the oil seal lip using a utility knife.
  2. Remove the oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the oil seal sliding part of the crankshaft.

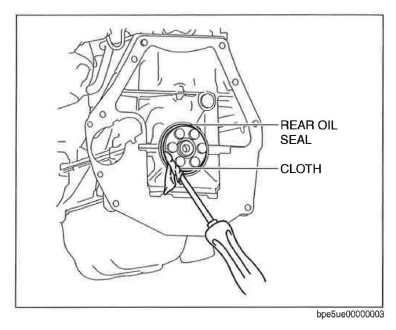

    Fig 1: Removing Rear Oil Seal
    G09757197Courtesy of MAZDA MOTORS CORP.
