Cylinder Block Disassembly (I): Notes

CAUTION:
  • Do not disassemble the oil pump, water pump and balancer unit because it is a precision unit.
  1. Disassemble in the order indicated in the table.

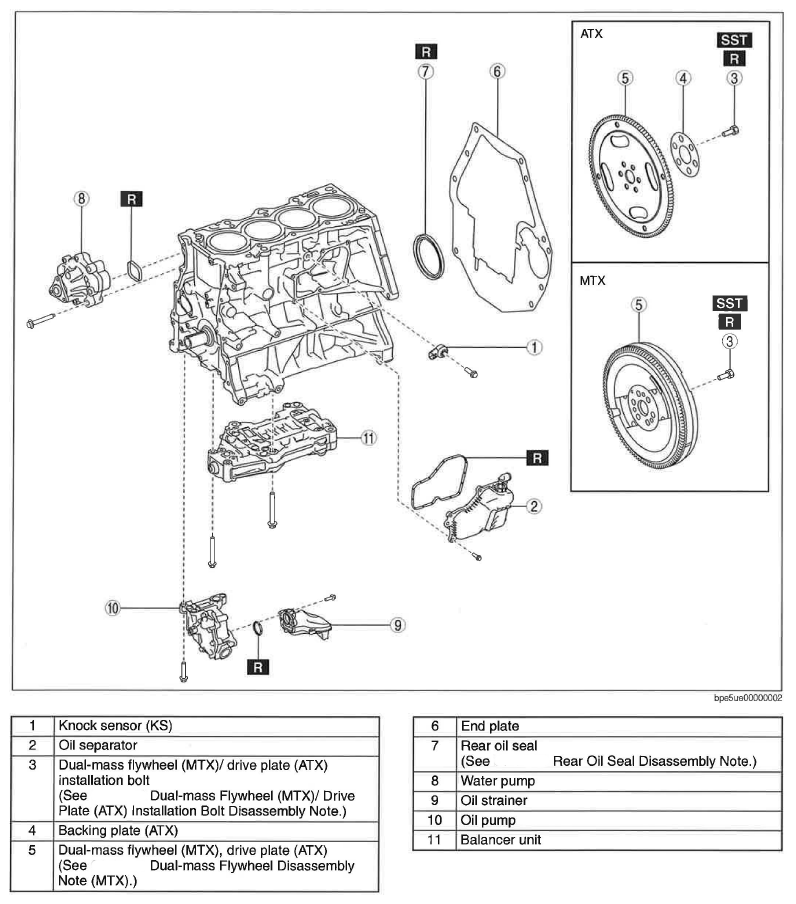

    Fig 1: Exploded View Of Cylinder Block (Disassembly Sequence)
    G09757192Courtesy of MAZDA MOTORS CORP.
