Dual-mass Flywheel (MTX)/Drive Plate (ATX) Installation Bolt Disassembly Note Dual-mass flywheel installation bolt (MTX): Notes

Hold the crankshaft using the SST (49 E011 1A0) .
Loosen the bolts uniformly and gradually in the order shown in the figure.
NOTE:
- If the bolt installation holes are not positioned properly, perform the following procedure:

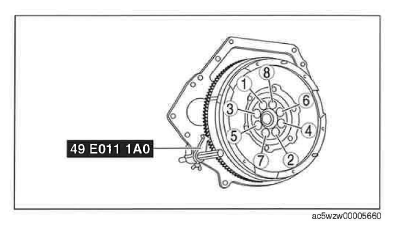

Fig 1: Flywheel Holding SST (49 E011 1A0) (With Loosening Sequence)
Courtesy of MAZDA MOTORS CORP.
1. Install the SST (49 S120 710) to the dual-mass flywheel.
2. Rotate the dual-mass flywheel (secondary flywheel side) using the SST (49 S120 710) .
3. When the bolt installation holes are positioned properly, hold the position and remove one of the bolts.

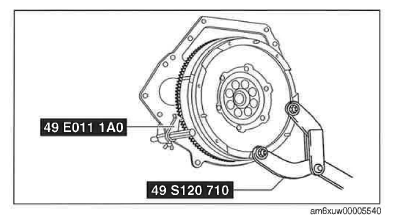

  Fig 2: SST (49 S120 710) To Dual-Mass Flywheel Holding Tool
  Courtesy of MAZDA MOTORS CORP.
4. After removing the bolt, set up the SST (49 G033 102) to lock the dual-mass flywheel (secondary flywheel side) against rotation.
  WARNING:
  - If all of the bolts are removed without locking the dual-mass flywheel (secondary flywheel side) against rotation, the dual-mass flywheel (primary or secondary flywheel side) may rotate, resulting in injury. Therefore, always set up the SST (49 G033 102).
  - When the bolts are removed from the dual-mass flywheel, always cover the bolt holes using tape. If the SST (49 G033 102) is removed while the operator's finger is inserted in the bolt hole, the dual-mass flywheel may rotate and the operator could be injured.

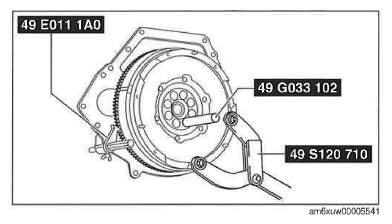

  Fig 3: Setting SST (49 G033 102) To Lock Dual-Mass Flywheel (Secondary Flywheel Side)
  Courtesy of MAZDA MOTORS CORP.
5. Remove the remaining bolts.
