Drive plate installation bolt (ATX)

  1. Hold the crankshaft using the SST  .
  2. Loosen the bolts uniformly and gradually.

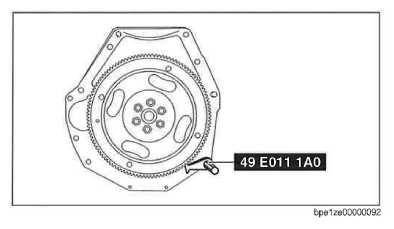

    Fig 1: Identifying Drive Plate Holding Tool
    G09757196Courtesy of MAZDA MOTORS CORP.
