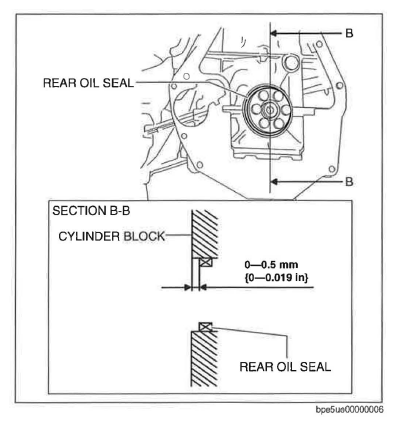

Rear Oil Seal Assembly Note
- Apply clean engine oil to the inner surface of a new rear oil seal.
- Insert the rear oil seal into the cylinder block by hand.
- Tap the oil seal in evenly using the SST
and a hammer.
Rear oil seal press on amount 0-0.5 mm {0-0.019 in}
