Oil Pump Assembly Note

Install the oil pump using the following procedure:
1. Temporarily tighten the three bolts shown in the figure.

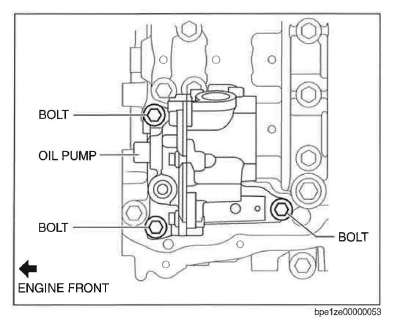

  Fig 1: Identifying Oil Pump Assembly And Bolts
  Courtesy of MAZDA MOTORS CORP.
2. Tighten the two bolts shown in the figure to the specified torque.
  NOTE:
  - The tightening order for the two bolts is optional.
  Tightening torque 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

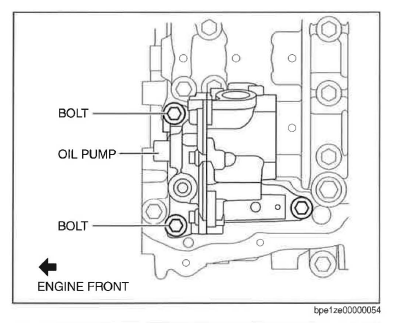

  Fig 2: Identifying Oil Pump Assembly And Bolts
  Courtesy of MAZDA MOTORS CORP.
3. Finally, tighten the bolt shown in the figure to the specified torque.
  Tightening torque 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

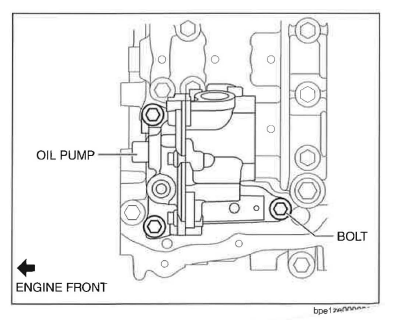

  Fig 3: Identifying Oil Pump Assembly And Bolt
  Courtesy of MAZDA MOTORS CORP.
