Cylinder Block Assembly (II): Notes

  1. Assemble in the order indicated in the table.

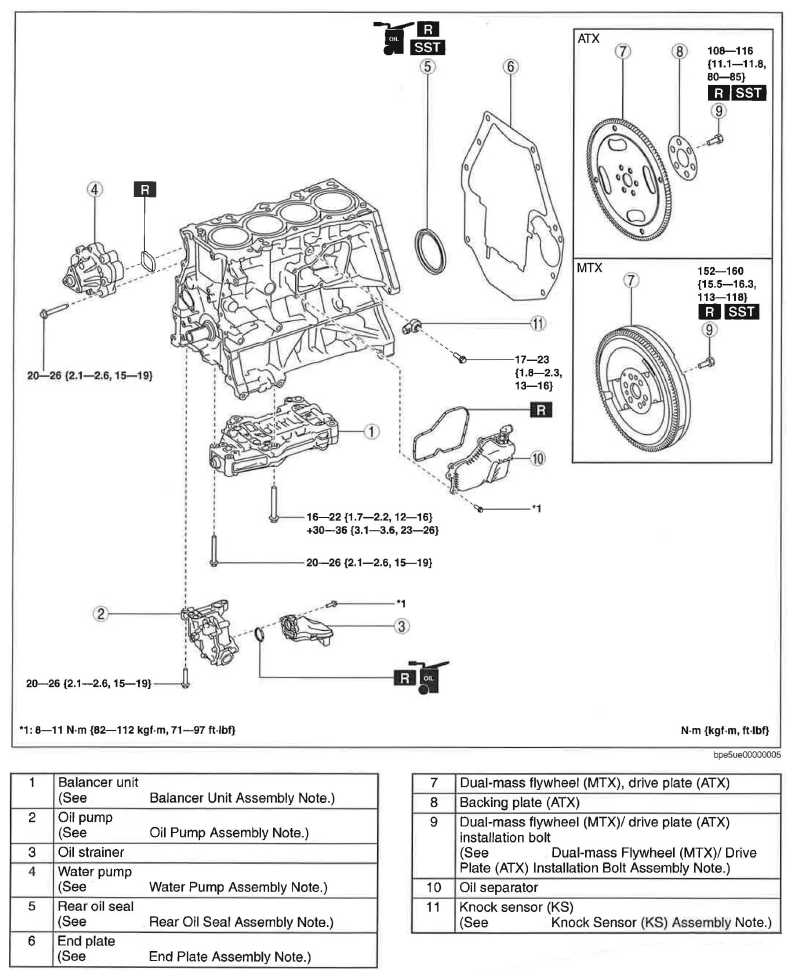

    Fig 1: Exploded View Of Cylinder Block Assembly With Torque Specifications
    G09757268Courtesy of MAZDA MOTORS CORP.
