End Plate Assembly Note

  1. After end plate assembly, crimp the parts A and B shown in the figure.

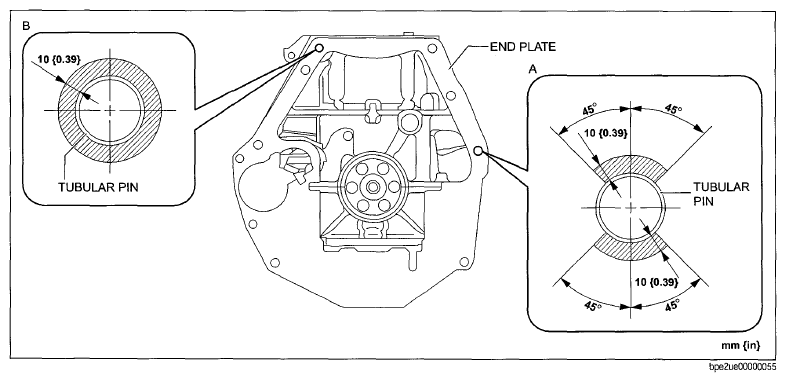

    Fig 1: Identifying End Plate Assembly Angle
    G08348116Courtesy of MAZDA MOTORS CORP.

    Crimp procedure

    Crimp depth: 0.1-1.0 mm {0.004-0.039 in}

    Crimp width: 0.5-10.0 mm {0.02-0.39 in}

    Crimp locations: Part A is 1 or more on one-side within shaded area and part B is 2 or more within shaded areas

  2. After crimping, verify that there is no damage and removal of the end plate.
