Balancer Unit Assembly Note

Assemble the balancer unit using the following procedure:

Tighten the bolts in the order shown in the figure.

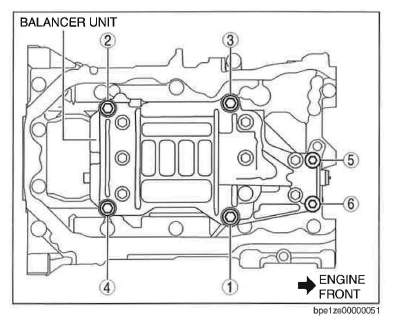

Fig 1: Balancer Unit Assembly Bolt Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Installation position	Tightening torque
1-4	16-22 N-m {1.7-2.2 kgf.m, 12-16 ft.lbf}
5, 6	20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

Retighten the bolts in the order of the numbers indicated in the figure.
Tightening torque 30-36 N.m {3.1-3.6 kgf.m, 23-26 ft.lbf}

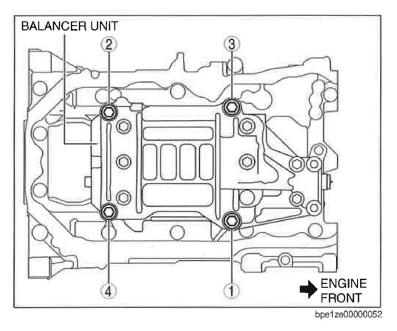

Fig 2: Balancer Unit Assembly Bolt Tightening Sequence
