Thrust bearing

  1. Apply clean engine oil to the thrust bearings.
  2. Assemble the bearings with the oil groove of the thrust bearing pointed toward the sliding surface.

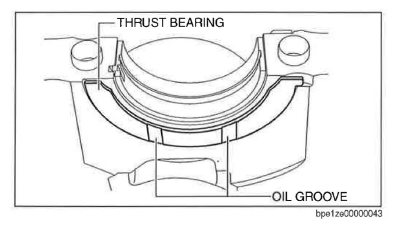

    Fig 1: Identifying Thrust Bearing
    G09757253Courtesy of MAZDA MOTORS CORP.
