Main bearing

  1. Apply clean engine oil to the main bearings.
  2. Align the positioning tab of the main bearing with the positioning groove of the lower and upper cylinder block, and assemble the bearings.

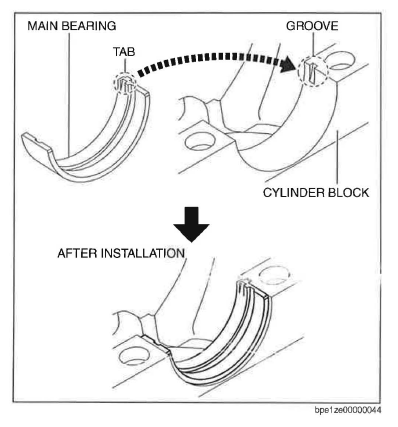

    Fig 1: Applying Main Bearing
    G09757254Courtesy of MAZDA MOTORS CORP.
