Connecting Rod Bearing Assembly Note

CAUTION:
  • If a connecting rod bearing is reused, assemble it to the same position and in the direction as before removal to prevent engine damage due to seizure or burning of the bearing.
  • To prevent engine damage due to seizure or burning of the bearing, apply engine oil to the sliding part when assembling.
  1. Apply engine oil to the connecting rod bearings.
  2. Align the positioning tab of the connecting rod bearing with the positioning groove of the connecting rod and connecting rod cap, and assemble the bearings.

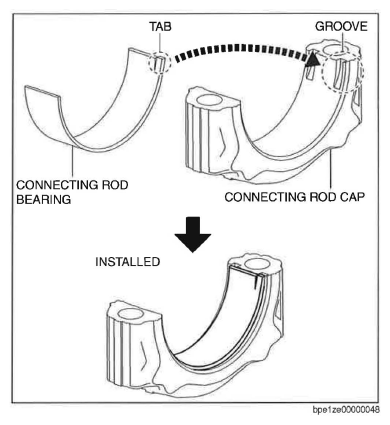

    Fig 1: Applying Engine Oil To Connecting Rod Bearings
    G09757263Courtesy of MAZDA MOTORS CORP.
