Connecting Rod Inspection

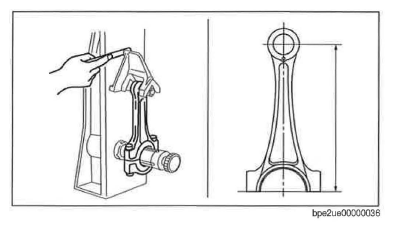

- Inspect the connecting rod for bending and distortion using the connecting rod aligner.
- If it exceeds the maximum specification, replace the connecting rod.
Maximum connecting rod bending 0.050 mm {0.0020 in}
Maximum connecting rod distortion 0.050 mm {0.0020 in}
Connecting rod center-to-center distance 154.8 mm {6.094 in}
