Exhaust system insulator removal/installation

  1. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

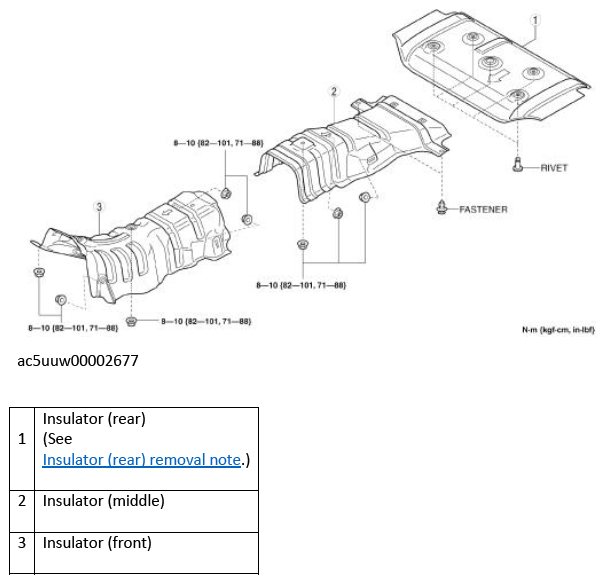

    Fig 1: Exploded View Of Exhaust System Insulator
    G11429471Courtesy of MAZDA MOTORS CORP.
