Exhaust system insulator removal/installation

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

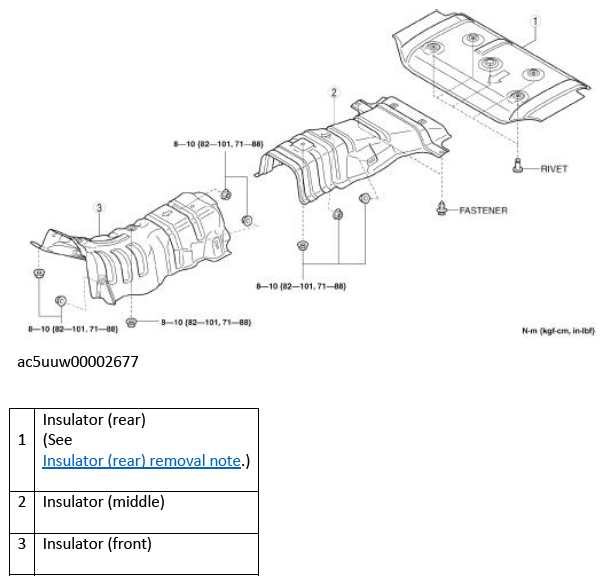

    Fig 1: Exploded View Of Exhaust System Insulator
    G11429461Courtesy of MAZDA MOTORS CORP.
