Oil Pump Driven Sprocket Removal Note (SKYACTIV-G 2.5)

1. Mark the following parts as shown in the figure.
   • Oil pump driven sprocket
   • Oil pump chain
   • Balancer unit sprocket
   Fig 1: Marking Oil Pump Driven Sprocket, Oil Pump Chain And Balancer Unit Sprocket

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • The marks will be used as alignment marks when installing the oil pump driven sprocket.
2. While locking the oil pump against rotation as shown in the figure, remove the oil pump driven sprocket installation bolt.
   Fig 2: Locking Oil Pump Against Rotation

   Courtesy of MAZDA MOTORS CORP.

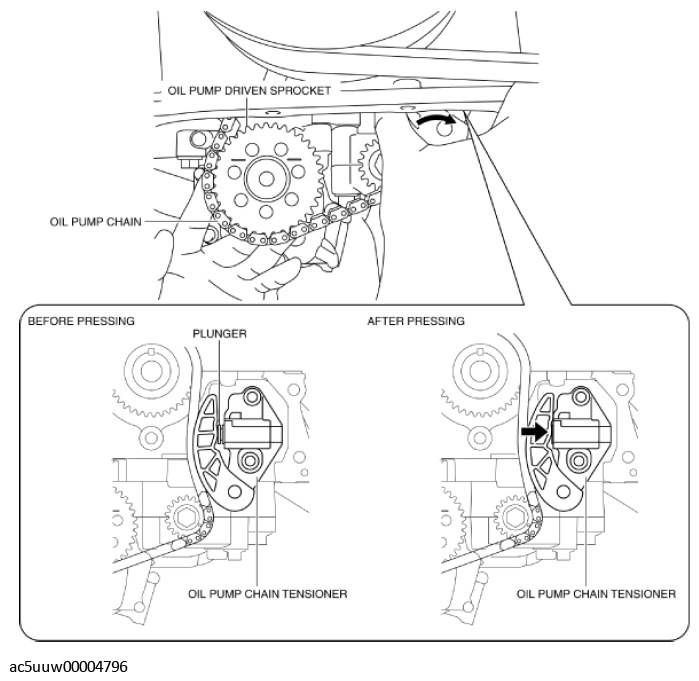

3. While pressing the oil pump chain in the direction of the arrow shown in the figure, remove the oil pump driven sprocket.

Fig 3: Removing Oil Pump Driven Sprocket

Courtesy of MAZDA MOTORS CORP.
