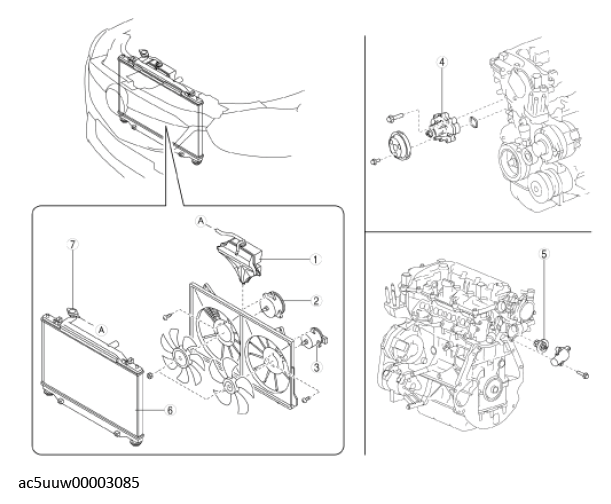

Cooling System Location Index
COMPONENT DESCRIPTION
| 1 | Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION .) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .) |
| 2 | Cooling fan motor No. 2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION .) (See COOLING FAN MOTOR INSPECTION .) |
| 3 | Cooling fan motor No. 1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION .) (See COOLING FAN MOTOR INSPECTION .) |
| 4 | Water pump (See WATER PUMP REMOVAL/INSTALLATION .) |
| 5 | Thermostat (See THERMOSTAT REMOVAL/INSTALLATION .) (See THERMOSTAT INSPECTION .) |
| 6 | Radiator (See ENGINE COOLANT PROTECTION INSPECTION .) (See ENGINE COOLANT LEAKAGE INSPECTION .) (See RADIATOR REMOVAL/INSTALLATION .) |
| 7 | Cooling system cap (See COOLING SYSTEM CAP INSPECTION .) |
