Upper radiator hose Removal Note
Upper radiator hose Removal Note
Remove the bracket shown in the figure from the throttle body and set the upper radiator hose aside.

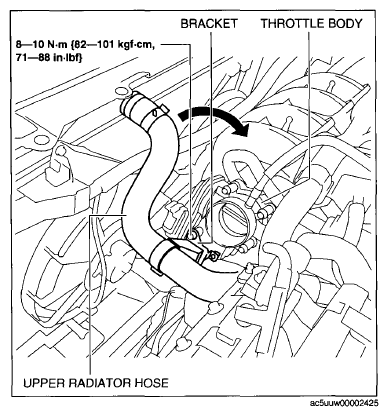

Fig 1: Removing Bracket From Throttle Body
Courtesy of MAZDA
Courtesy of MAZDA
