Cooling Fan Component Removal Note

  1. Disconnect the connectors from the cooling fan motors.
  2. Remove the wiring harness clips shown in the figure.

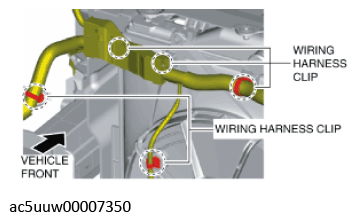

    Fig 1: Wiring Harness Clips (1 Of 2)
    G11429366Courtesy of MAZDA

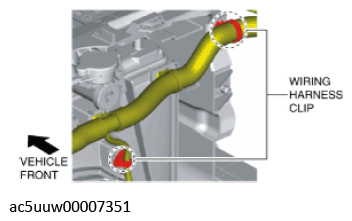

    Fig 2: Wiring Harness Clips (2 Of 2)
    G11429367Courtesy of MAZDA
  3. Remove the cooling fan component from above the engine compartment.
Fig 3: Removing Cooling Fan Component
G09074394Courtesy of MAZDA
