Coolant Reserve Tank Removal Note

  1. Remove the wiring harness clips shown in the figure.

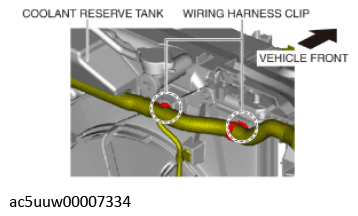

    Fig 1: Wiring Harness Clips And Coolant Reserve Tank
    G11429361Courtesy of MAZDA
  2. Remove the coolant reserve tank from the radiator cowling tabs shown in the figure by lifting them with a flathead screwdriver.
Fig 2: Radiator Cowling Tabs
G09074375Courtesy of MAZDA
