With multi-information display
X: Applicable-: Not applicable

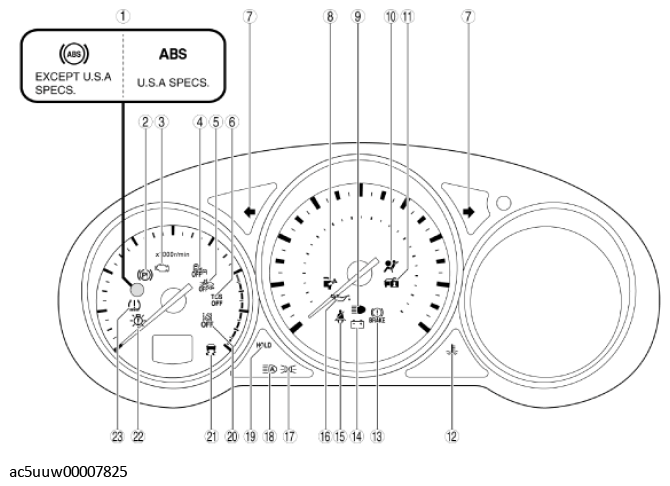

| No. | Warning light/Indicat or light | Name | Message is displayed in multi-information display when warning/indicat or light turns on/flashes | Message is displayed in center display when warning/indicat or light turns on/flashes | Comment | Warning/indicat or light turned on when ignition is switched ON (engine off or on) |
|---|---|---|---|---|---|---|
| 1 | ABS warning light | - | x | - | x | |
| 2 | Electric parking brake warning light | x | x | - | - | |
| 3 | Check engine light | - | x | - | x | |
| 4 | Blind spot monitoring (BSM) OFF indicator light | - | - | With blind spot monitoring (BSM) system | - | |
| 5 | Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light | - | - | With smart city brake support (SCBS) or smart brake support (SBS) | x | |
| 6 | TCS OFF |
TCS OFF indicator light | - | - | - | x |
| 7 | Turn signal/hazard warning indicator lights | - | - | - | - | |
| 8 | Check fuel cap warning light | x | x | - | x | |
| 9 | Headlight high-beam indicator light | - | - | - | - | |
| 10 | Air bag/seat belt pretensioner system warning light | - | x | - | - | |
| 11 | Security indicator light | - | - | - | x | |
| 12 | Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) | x | x | - | x | |
| 13 | Brake system warning light | x | x | - | x | |
| 14 | Charging system warning light | x | x | - | x | |
| 15 | Seat belt warning light | - | - | - | - | |
| 16 | Engine oil warning light | x | x | - | x | |
| 17 | Lights-on indicator light | x | - | - | - | |
| 18 | HBC indicator light (green)/HBC warning light (amber) | - | x | With high beam control (HBC) system | x | |
| 19 | HOLD | AUTOHOLD active indicator light | x | - | - | x |
| Mazda radar cruise control with stop go function (MRCC with stop GO function) indicator light | x | - | - | x | ||
| 20 | Lane-keep assist system OFF indicator light/LDWS OFF indicator light | - | - | With lane departure warning system (LDWS) or lane-keep assist system | - | |
| 21 | TCS/DSC indicator light | - | x | - | x | |
| 22 | LED headlight warning light | - | x | With headlight (LED type) | - | |
| 23 | Tire pressure monitoring system warning light | x | x | - | x |
