DTC U2013-13; Cluster Switch Circuit Malfunction: Notes
DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Cluster switch circuit malfunction |
| Detection condition |
- The instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Cluster switch connector or terminal malfunction

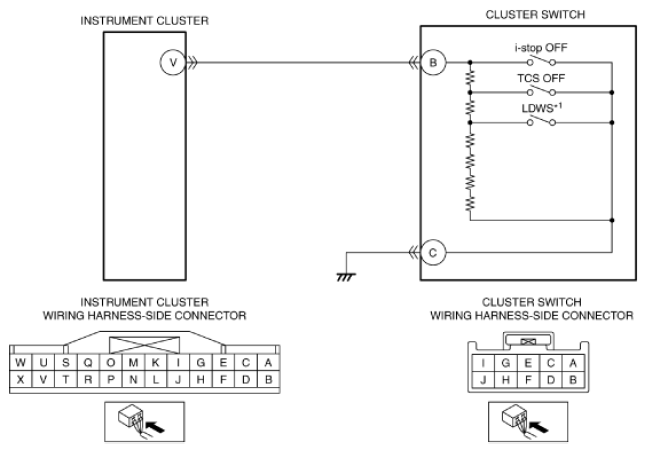

- Open circuit in wiring harness between cluster switch terminal C and body ground
- Instrument cluster connector or terminal malfunction
- Open circuit in wiring harness between instrument cluster terminal V and cluster switch terminal B
- Cluster switch malfunction
- Instrument cluster malfunction
|
|
|
| *1: With lane departure warning system (LDWS) |
