Wheel Hub Component Removal/Installation (2WD): Notes
Special Service Tool (SST)
| 49 T028 301 Dust boot installer |
49 U034 204 Dust boot installer |
49 W032 310 Support block |
Replacement Part
| Wheel hub bolt Quantity: 1 Location of use: Wheel hub |
Hub support bushing (front) Quantity: 1 Location of use: Hub support |
Hub support bushing (rear) Quantity: 1 Location of use: Hub support |
CAUTION:
- Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition off.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal. (See SUSPENSION LINKS INSTALLATION NOTE .)
- When the hub support, hub support bushing (front), or hub support bushing (rear) is replaced, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

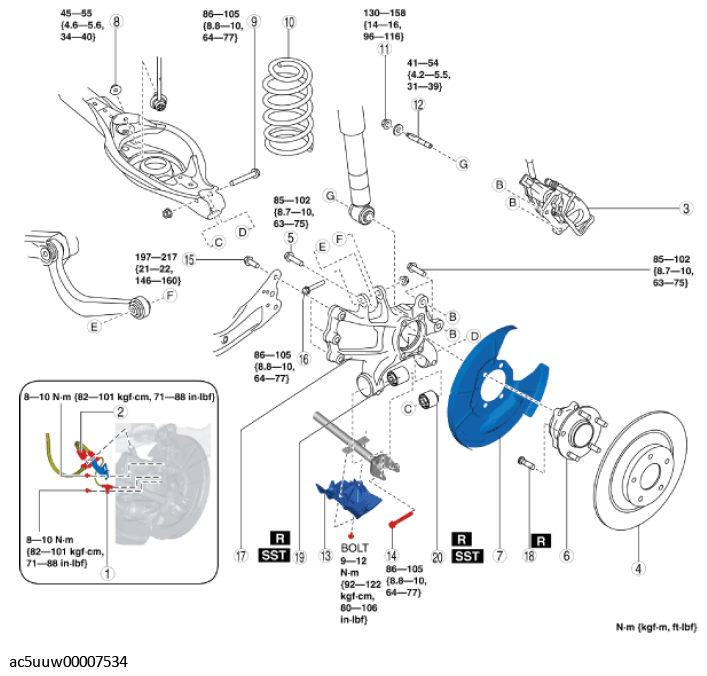

COMPONENT DESCRIPTION
| 1 | Rear ABS wheel-speed sensor |
| 2 | Electric parking brake motor gear unit connector |
| 3 | Brake caliper component (See Brake Caliper Component Removal Note .) |
| 4 | Disc plate |
| 5 | Bolt (wheel hub) |
| 6 | Wheel hub |
| 7 | Dust cover |
| 8 | Rear stabilizer control link lower side nut |
| 9 | Rear lower arm outer bolt (See Rear Lower Arm Outer Bolt Removal Note .) |
| 10 | Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION .) |
| 11 | Rear shock absorber lower nut |
| 12 | Stud bolt |
| 13 | Protector (With protector) |
| 14 | Rear lateral link outer bolt |
| 15 | Rear trailing link installation bolt |
| 16 | Bolt (rear upper arm outer side) |
| 17 | Hub support |
| 18 | Wheel hub bolt (See Wheel Hub Bolt Removal Note .) (See Wheel Hub Bolt Installation Note .) |
| 19 | Hub support bushing (front) (See Hub Support Bushing (Front) Removal Note .) (See Hub Support Bushing (Front) Installation Note .) |
| 20 | Hub support bushing (rear) (See Hub Support Bushing (Rear) Removal Note .). (See Hub Support Bushing (Rear) Installation Note .) |
