Rear Axle Location Index

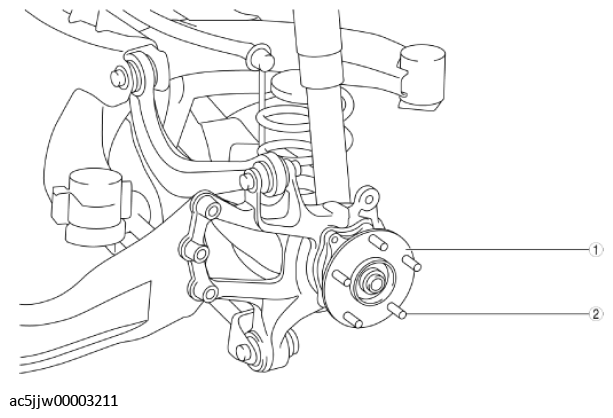

Fig 1: Rear Axle Parts Location
G11427237Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Wheel hub component
(See WHEEL HUB COMPONENT INSPECTION .)
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (2WD) .)
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (AWD) .)
(See REAR WHEEL HUB BOLT REPLACEMENT .)
2 Wheel hub bolt
(See REAR WHEEL HUB BOLT REPLACEMENT .)
