Wheel Hub Installation Note

  1. Apply grease (L2Y1 33247 or equivalent) to the wheel bearing inner race and drive shaft contact surface (Area A in figure).

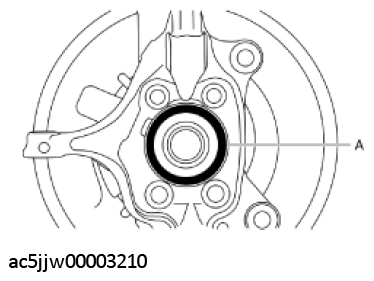

    Fig 1: Grease Applying Area To Wheel Bearing Inner Race And Drive Shaft Contact Surface
    G11427220Courtesy of MAZDA MOTORS CORP.
  2. Install the wheel hub.
