Locknut Removal Note

  1. Remove the locknut.
  2. Install a spare nut onto the drive shaft.
  3. Tap the nut with a copper hammer and separate the drive shaft from the axle.

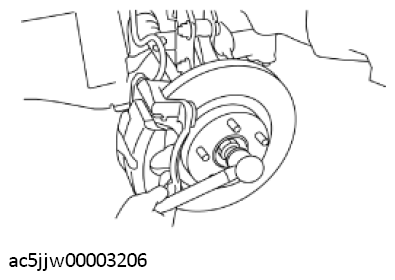

    Fig 1: Tapping Nut With Copper Hammer
    G11427216Courtesy of MAZDA MOTORS CORP.
