Boot Band (Wheel Side) Assembly Note

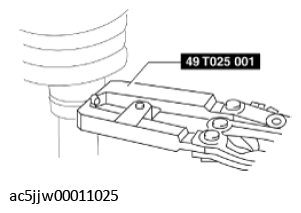

Adjust opening A of the SST to the standard by rotating the adjustment bolt.

Fig 1: Adjusting Opening A Of SST To Standard
Courtesy of MAZDA MOTORS CORP.

Standard A

Approx. 4.6 mm {0.18 in}
Crimp the boot band using the SST.

Fig 2: Crimping Boot Band Using SST
Courtesy of MAZDA MOTORS CORP.
Verify that crimp B of the boot band is within the standard.

Fig 3: Boot Band Crimp B
Courtesy of MAZDA MOTORS CORP.

Standard B

1.2-4.0 mm {0.05-0.15 in}
- If crimp B exceeds the standard, decrease opening A of the SST and crimp the boot band again.
- If crimp B is less than the standard, replace the boot band, increase opening A of the SST, and crimp the new boot band.
Verify that the boot band does not protrude from the boot band assembly area.
- If the boot band protrudes from the assembly area, replace it with a new one and repeat Steps 1 to 3.
