DTC C0031-11; C0031-15; C0034-11; C0034-15; C0037-11; C0037-15; C003A-11 C003A-15; Abs Wheel-Speed Sensors: Notes

DETECTION CONDITION & POSSIBLE CAUSE

DTC	C0031:11, C0031:15	LF ABS wheel-speed sensor
	C0034:11, C0034:15	RF ABS wheel-speed sensor
	C0037:11, C0037:15	LR ABS wheel-speed sensor
	C003A:11, C003A:15	RR ABS wheel-speed sensor
DETECTION CONDITION		C0031:11, C0034:11, C0037:11, C003A:11 Short to ground has been detected in the ABS wheel-speed sensor wiring harness on any of the four vehicle wheels. C0031:15, C0034:15, C0037:15, C003A:15 Open circuit or short to power supply has been detected in the ABS wheel-speed sensor wiring harness on any of the four vehicle wheels.
FAIL-SAFE FUNCTION		Refer to "DTC Table" and "Fail-safe Function Malfunction Contents". (See DTC TABLE [DYNAMIC STABILITY CONTROL (DSC)] .)

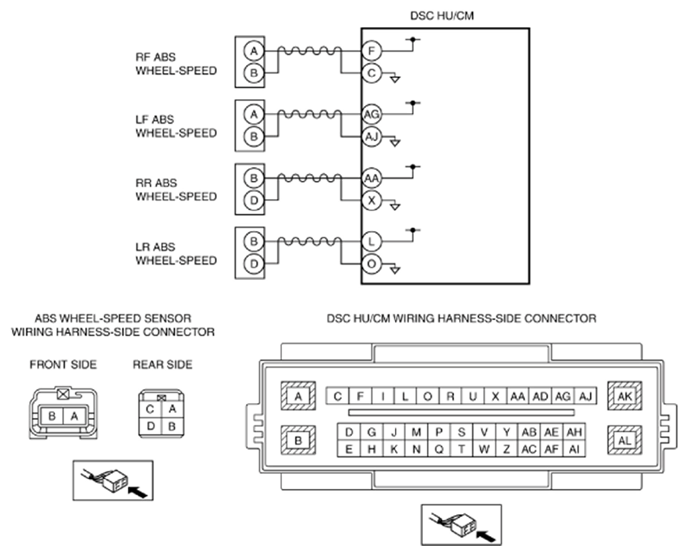

POSSIBLE CAUSE		Open circuit or short to ground/power supply in the wiring harness between the following DSC HU/CM terminals and ABS wheel-speed sensor terminals: DSC HU/CM terminal F-RF ABS wheel-speed sensor terminal A DSC HU/CM terminal C-RF ABS wheel-speed sensor terminal B DSC HU/CM terminal AG-LF ABS wheel-speed sensor terminal A DSC HU/CM terminal AJ-LF ABS wheel-speed sensor terminal B DSC HU/CM terminal AA-RR ABS wheel-speed sensor terminal B DSC HU/CM terminal X-RR ABS wheel-speed sensor terminal D DSC HU/CM terminal L-LR ABS wheel-speed sensor terminal B DSC HU/CM terminal O-LR ABS wheel-speed sensor terminal D Malfunction in the ABS wheel-speed sensor DSC HU/CM malfunction Poor connection at connectors (female terminal)
