DTC C0020-11; C0020-12; C0020-13; C0020-49; C0020-71; Pump Motor Relays: Notes

DETECTION CONDITION & POSSIBLE CAUSE

DTC	C0020:11, C0020:12, C0020:13, C0020:49, C0020:71	Pump motor, motor relay
DETECTION CONDITION		C0020:11 Motor relay signal does not correspond to DSC HU/CM OFF signal. C0020:12, C0020:49 DSC motor monitor signal does not correspond to DSC HU/CM OFF signal. DSC motor monitor signal does not correspond to DSC HU/CM ON signal. C0020:13 Motor relay signal does not correspond to DSC HU/CM ON signal. C0020:71 DSC HU/CM motor monitor ON signal is not input within specified time limit or more when motor signal is switched from ON to OFF by DSC HU/CM.
FAIL-SAFE FUNCTION		Refer to "DTC Table" and "Fail-safe Function Malfunction Contents". (See DTC TABLE [DYNAMIC STABILITY CONTROL (DSC)] .)

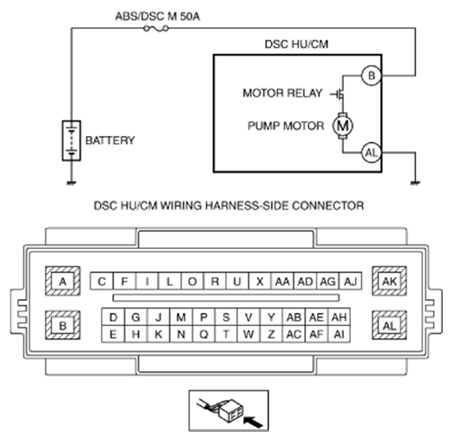

POSSIBLE CAUSE		Fuse (ABS/DSC M 50A) malfunction Open or short circuit in DSC HU/CM internal motor relay, or stuck motor relay Open or short circuit in DSC HU/CM internal pump motor, or frozen pump motor Open circuit or short to ground in the wiring harness between the battery and DSC HU/CM terminal B Open circuit in the wiring harness between DSC HU/CM terminal AL and body ground Poor connection at connectors (female terminal)
