System Wiring Diagram [Electric Parking Brake]

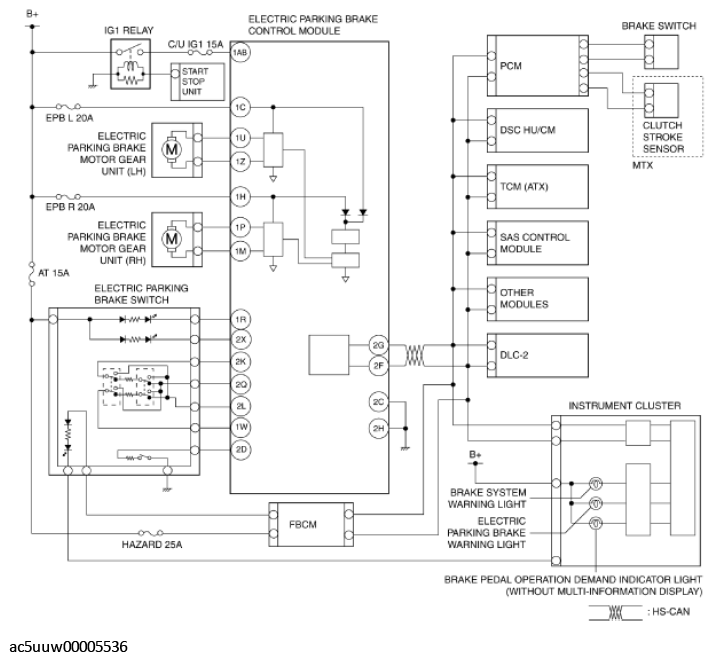

Fig 1: Electric Parking Brake System Wiring Diagram

G11427037

Courtesy of MAZDA MOTORS CORP.
