Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Symptom Troubleshooting - Electric Parking Brake
>>
Electric Parking Brake Switch Indicator Light Is On Or Off Constantly [Electric Parking Brake]
>>
System Wiring Diagram
System Wiring Diagram

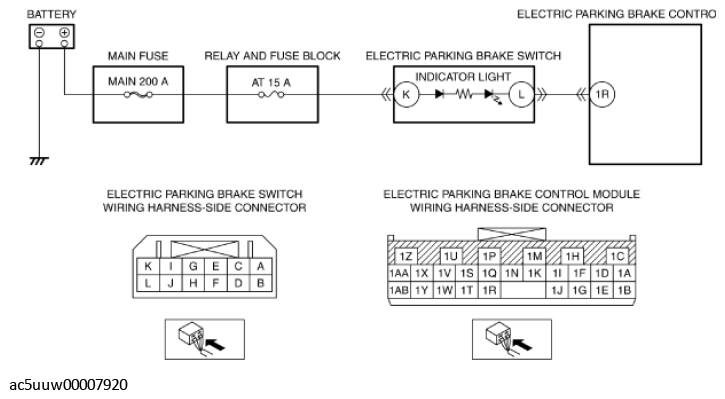

Fig 1: Electric Parking Brake Control Module System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
