Electric Parking Brake Motor Gear Unit Removal/Installation

Replacement Part

1. Switch the ignition ON (engine off).
2. Release the electric parking brake.
3. Switch the ignition off.
4. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
5. Disconnect the electric parking brake motor gear unit connector.

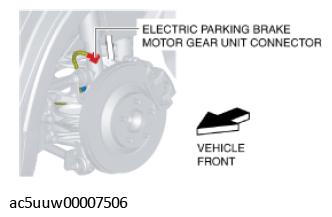

   Fig 1: Locating Electric Parking Brake Motor Gear Unit Connector

   Courtesy of MAZDA MOTORS CORP.
6. Remove the bolts.

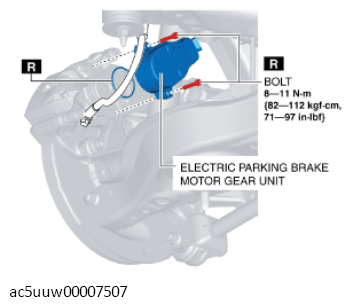

   Fig 2: Removing Electric Parking Brake Motor Gear Unit

   Courtesy of MAZDA MOTORS CORP.
7. Remove the electric parking brake motor gear unit.
8. Install in the reverse order of removal.
