On-Board Diagnostic Wiring Diagram [Electric Parking Brake]
On-Board Diagnostic Wiring Diagram [Electric Parking Brake]

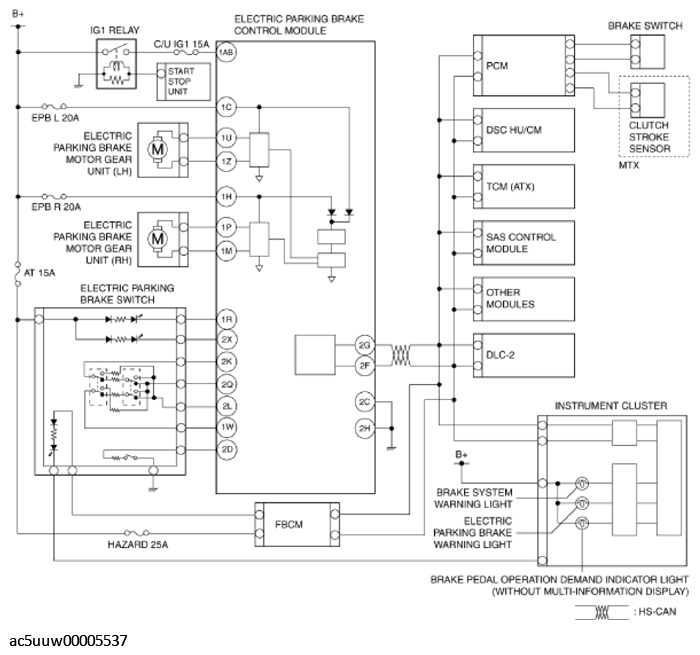

Fig 1: Electric Parking Brake - On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
