DTC C2006-19; Electric Parking Brake Motor Gear Unit (LH) Circuit Malfunction: Notes
DTC C2006-19; ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Electric parking brake motor gear unit (LH) circuit malfunction |
| Detection condition |
- Electric parking brake control module detects that the current flowing to the electric parking brake motor gear unit (LH) circuit is higher than the threshold.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (LH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

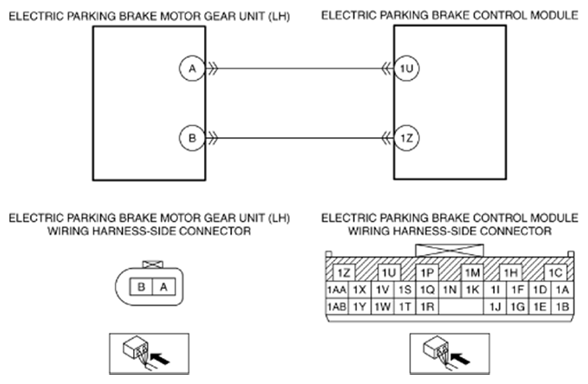

- Short to ground in wiring harness between the following terminals:
- Electric parking brake motor gear unit (LH) terminal A-Electric parking brake control module terminal 1U
- Electric parking brake motor gear unit (LH) terminal B-Electric parking brake control module terminal 1Z
- Short to power supply in wiring harness between the following terminals:
- Electric parking brake motor gear unit (LH) terminal A-Electric parking brake control module terminal 1U
- Electric parking brake motor gear unit (LH) terminal B-Electric parking brake control module terminal 1Z
- Short circuit between electric parking brake motor gear unit (LH) circuits
- Electric parking brake motor gear unit (LH) malfunction
- Electric parking brake control module malfunction
|
|
|
