DTC C2005-12; Electric Parking Brake Motor Gear Unit (RH) Circuit Malfunction: Notes
DTC C2005-12; ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (RH) CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Electric parking brake motor gear unit (RH) circuit malfunction |
| Detection condition |
- Electric parking brake control module detects a short to power supply in the electric parking brake motor gear unit (RH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (RH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

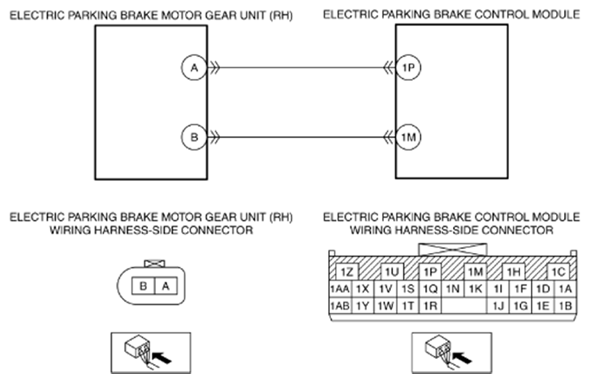

- Short to power supply in wiring harness between the following terminals:
- Electric parking brake motor gear unit (RH) terminal A-Electric parking brake control module terminal 1P
- Electric parking brake motor gear unit (RH) terminal B-Electric parking brake control module terminal 1M
- Electric parking brake motor gear unit (RH) malfunction
- Electric parking brake control module malfunction
|
|
|
