Vacuum Hose Removal/Installation
>>
Vacuum hose (between intake manifold and vacuum pump) installation note
Vacuum hose (between intake manifold and vacuum pump) installation note
Install the vacuum hose as shown in the figure.

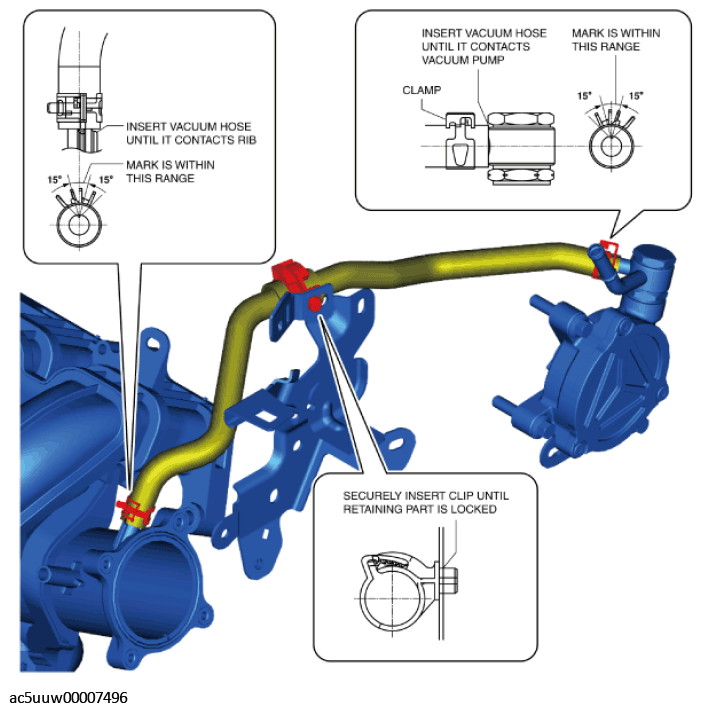

Fig 1: Installing Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
